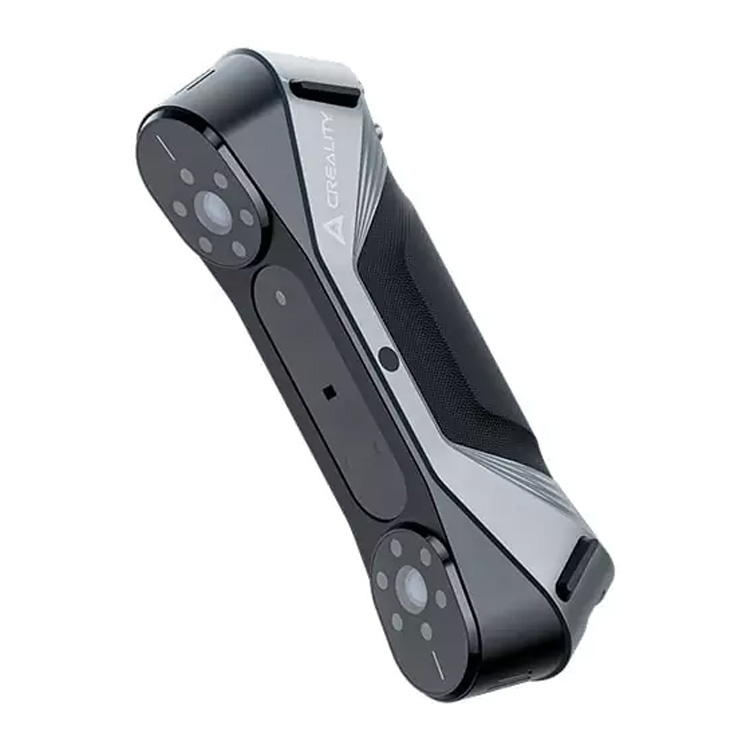

Creality CR-Scan Raptor 3D Scanner

Creality CR-Scan Raptor 3D Scanner: Metrology-Grade Precision and Versatility

Superior Accuracy and Detail

The Creality CR-Scan Raptor 3D Scanner offers metrology-grade accuracy up to 0.02mm, ensuring every scan captures fine details with exceptional clarity. Equipped with 7 blue parallel laser lines, it delivers sharper and clearer point cloud edges, making it ideal for industrial 3D scanning applications.

Advanced Scanning Technology

This scanner integrates hybrid blue laser and NIR (near-infrared) light sources, allowing it to handle small, medium, and large objects with ease. The 7 parallel blue laser lines enable high-precision scanning, while the NIR structured light scanning achieves speeds up to 60fps for unparalleled efficiency.

Versatile Scanning Capabilities

The CR-Scan Raptor excels in scanning a wide range of objects, from small items as tiny as 5mm to large objects up to 2000mm in size. Its anti-shaking technology and fast backtracking speed ensure smooth handheld scanning, even in challenging conditions. The advanced temperature compensation algorithm enhances temperature stability, ensuring consistent accuracy.

Effortless Scanning of Black and Metal Objects

No need for scanning sprays—the CR-Scan Raptor can scan black and metal objects like cars, car parts, and tires directly, delivering the desired model effect with ease. Its unique face and body algorithm captures intricate details, making it perfect for human body scans, which can be completed in as little as 2 minutes.

Intuitive and Portable Design

Designed for user convenience, the CR-Scan Raptor features a lightweight and compact build, weighing only 372g. It offers one-hand control and comes with intuitive touch buttons and an audible prompt for straightforward operation. The ring indicator light provides real-time scanning status feedback.

High-Quality Color Scanning

Equipped with 12 circular LED texture lights, the scanner enhances the brightness of color mapping in dark environments, ensuring true-to-life color reproduction. This 24-bit full-color scanning capability makes the CR-Scan Raptor perfect for capturing the full spectrum of an object’s appearance.

Comprehensive Software and Easy Integration

The CR-Scan Raptor supports CrealityScan software, offering a seamless scanning experience with powerful image and point cloud processing capabilities. Its step-by-step tutorials and one-click model processing make it easy to get started. The scanner also supports marker scanning for higher accuracy, even on objects with fewer scanning features.

Robust and Aesthetic Design

Built with a high-precision glass calibration board, the CR-Scan Raptor maintains its accuracy over time. Its full metal body and excellent heat dissipation ensure durability and quiet operation, balancing aesthetics and functionality.

Specifications

• Accuracy (Blue Light Mode): Up to 0.02mm @ 100mm
• 3D Resolution: 0.02-2mm
• Scanning Speed (Blue Light Mode): Up to 60fps
• Min. Scan Volume: 5mm x 5mm x 5mm
• Single Capture Range: 270mm x 170mm @ 300mm
• Working Distance: 150mm-400mm
• Color Mapping: Yes
• Alignment Mode: Marker
• Accuracy (NIR Mode): Up to 0.1mm
• 3D Resolution (NIR Mode): 0.1-2mm
• Scanning Speed (NIR Mode): Up to 20fps
• Single Capture Range (NIR Mode): 930mm x 580mm @ 1000mm
• Working Distance (NIR Mode): 170mm-1000mm
• Color Supplemental Light: 12 white LEDs
• Marker Recognition Enhancement: 12 blue LEDs
• Laser Safety: Class I (eye safe)
• Button: Mechanical
• IMU: Yes
• Output Format: OBJ/STL/PLY
• Input Power: 12V 2A
• Data Interface: Type C/USB3.0
• Device Dimensions: 215mm x 50mm x 74mm
• Device Weight: 372g
• Calibration Board: High-precision glass calibration board
• Wireless Scanning: Supported with future wireless scanning accessories
• System Support: Windows/macOS
• Operating Temperature: -10°C to 40°C
• Operating Humidity: 0-90% RH

Experience the future of 3D scanning with the Creality CR-Scan Raptor. With its advanced technology, superior accuracy, and versatile capabilities, it is the ultimate tool for capturing detailed and precise 3D models in various industrial applications.
